PLEASE NOTE
This method is for connecting your local Wi-Fi using the USB Wi-Fi Dongle connected to the Fanvil
X5U / X6U / X7U / X210 Models
&
for connecting your local Wi-Fi using the built in Wi-Fi card in the Fanvil X3SW

How to connect to your local WiFi
using the WiFi Dongle or X3SW

• For the X5U / X6U / X7U / X210 Models
  First, Insert the WiFi Dongle into the USB port on the IP Phone

• On the Main Screen, select Menu

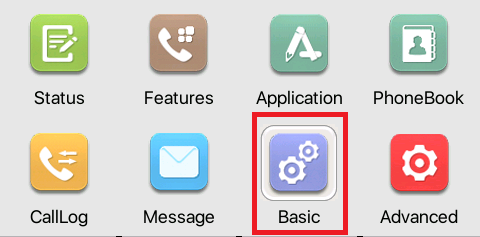

• Using the arrow and ok buttons, go to Basic Settings and press OK

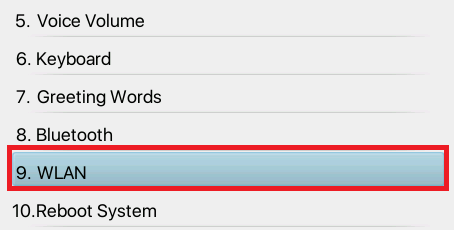

• Select WLAN and press OK

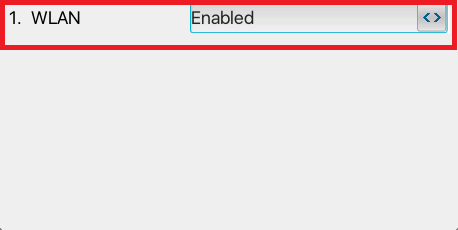

• Using the arrow buttons set the WLAN to enabled, once successful it will search the local networks

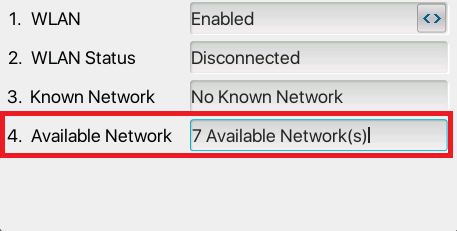

• Using the arrow buttons go to the section marked Available Network and press OK/Enter

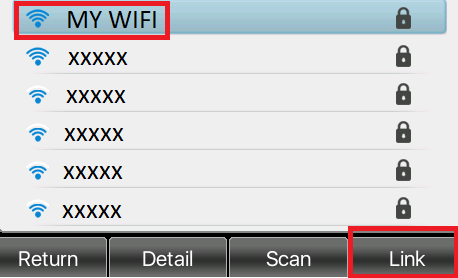

• Using the arrow buttons, select your WiFi then press the button marked Link

• Using the number buttons, enter the WiFi password for your WiFi (case sensitive)

Linkvil W611W WiFi Phone

SELECT MENU

SELECT WLAN

WLAN SHOULD BE SET TO ENABLED

SCAN FOR AVAILABLE NETWORKS

WHEN THE SCAN IS COMPLETE
PRESS OK/ENTER ON
AVAILABLE NETWORKS

FIND THE NETWORK/SSID
MATCHING YOUR NETWORK/BROADBAND

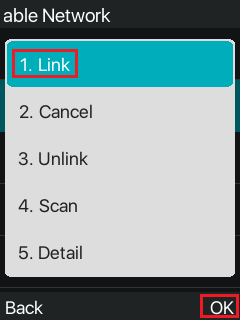

SELECT MORE > LINK

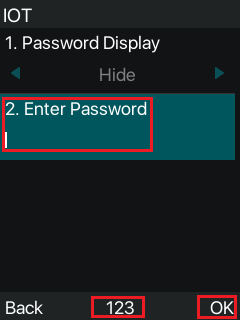

ENTER THE PASSWORD FOR YOUR WiFi / WPA2 PASSWORD
(this is case sensitive)


YOU CAN USE THE # KEY TO SWITCH BETWEEN
THE DIFFERENT ALPHABET/NUMBER OPTIONS

PRESS OK WHEN COMPLETE
