Introduction
Boxly is an AI-powered dental CRM that helps dental practices capture leads, automate follow-ups, and effortlessly grow patient bookings.
NUACOM integrates with Boxly and syncs the calls with AI data to your Boxly leads.
How to Set Up
Boxly Settings
To set up the integration, first, you need an API key from Boxly for telephone use.
Login to https://app.boxly.ai/ with your credentials, head to Channels, and click on Connect a new Channel.
Then select API Channel, open the new window, select the Phone channel type, and enter NUACOM in the name field.
Then, on the newly created channel, head to API keys, and click on Create an API key. Give the API key any name and click create. Then Copy the key, this key will need to be placed on NUACOM.
NUACOM Settings
Having the API key, log in to the NUACOM web portal and head to Apps & Integrations.
Locate the Boxly integration and click on connect. In the new window, paste the Boxly API key. Once connected successfully, you have the option to:
- Send the call recording as a file to Boxly for analysis or use a redirection link to access it through NUACOM
- Send AI data to Boxly if AI Call Analysis is enabled in NUACOM. This will push the Call Summary to Boxly, making it easier to understand the call's reason and organise your leads correctly.
- Select which calls to sync. You can select to sync specific calls to Boxly.
Calls in Boxly
Mapping Fields
This is what NUACOM is pushing on to Boxly for each call you sync:
Boxly Field |
NUACOM |
Comments |
|---|---|---|
phone |
The number of the external entity. Can be caller or callee. |
|
first_name |
If the number is saved in NUACOM phonebooks, or integration contacts, this is the first name of the contact. |
|
last_name |
If the number is saved in NUACOM phonebooks, or integration contacts, this is the last name of the contact. |
|
If the number is saved in NUACOM phonebooks, this is the email of the contact. |
|
|
message |
The call direction. |
Internal calls are not pushed. |
from_number |
Caller number in E164 format. |
|
to_number |
Callee number in E164 format. |
|
date_time |
ISO timestamp. |
|
duration |
The total call duration in seconds. |
|
direction |
inbound / outbound |
|
call_outcome |
The call disposition. |
|
summary |
The NUACOM AI Call Summary |
Thies field is blank is there is no AI analysis in the call. |
recording_link |
Direct Audio Call Link |
Depending on your app settings. |
recording_link_redirect |
Redirected Audio Call Link |
Depending on your app settings. |
extension |
Extension participated in the call |
|
description |
The call notes |
This will get synced to boxly if you added any call note, during the call. |
End result of a call

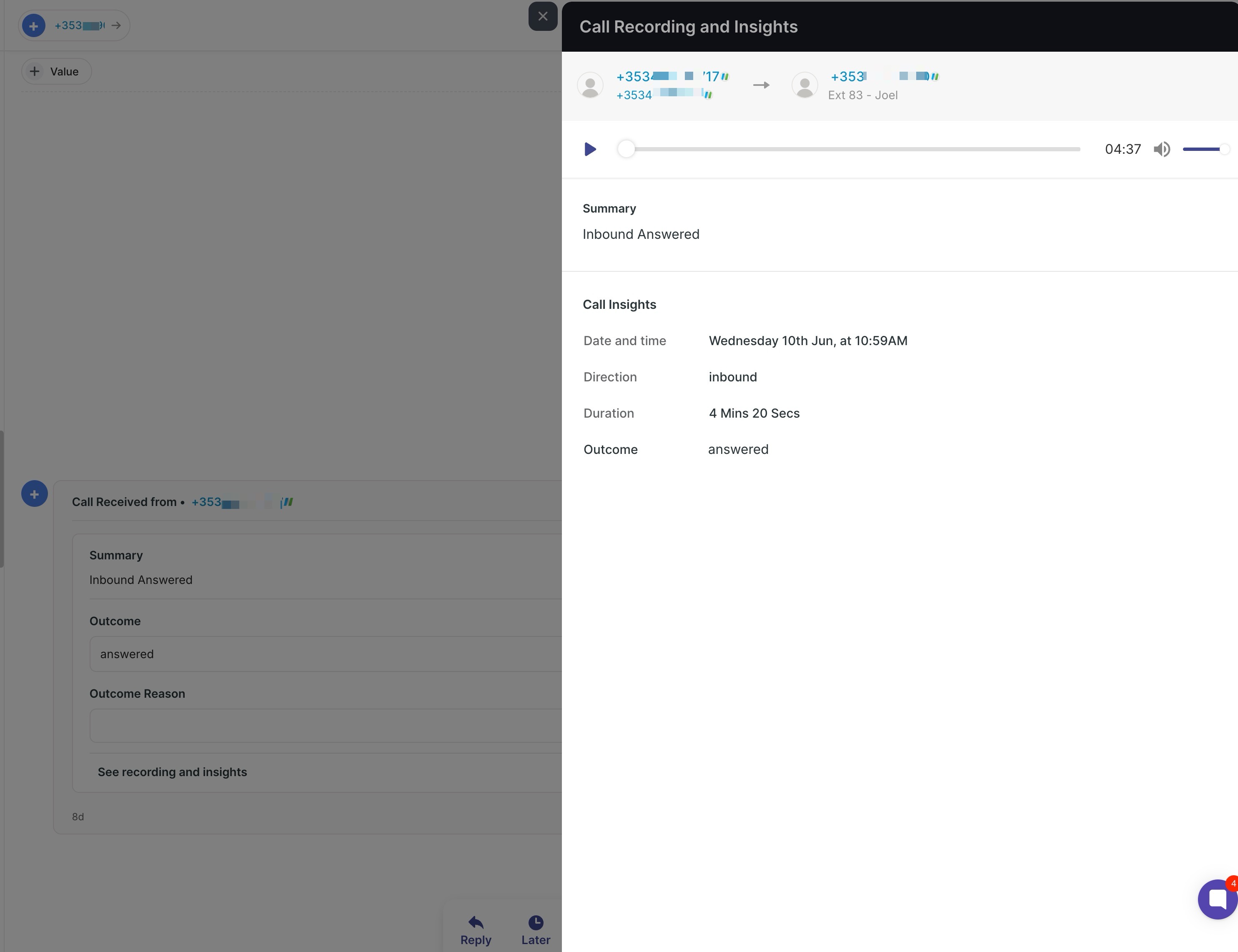

This is how a call will look in Boxly once synced:

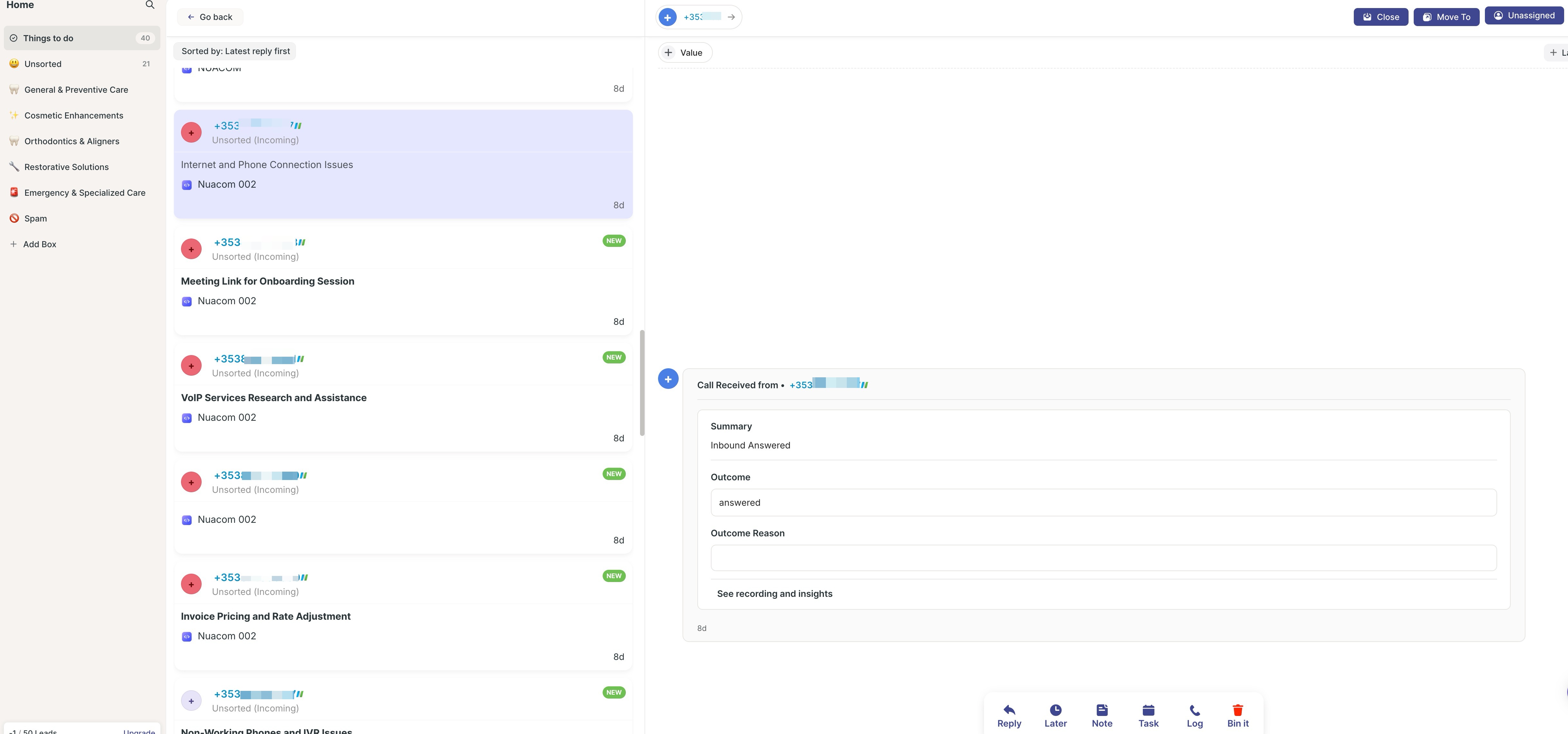

In your lists, you will get the contact's number and/or name if it's saved in NUACOM. You will also get the direction of the call and a small summary of the call if you have enabled NUACOM AI.
