Setting up the WH62 Headset (for a Fanvil phone & Nuacom Desktop App)

Mark Denner
Mark Denner
  • Updated


Connecting to a Fanvil phone



The WH62 headset will require the following contents (if being used to connect to a Fanvil Phone)

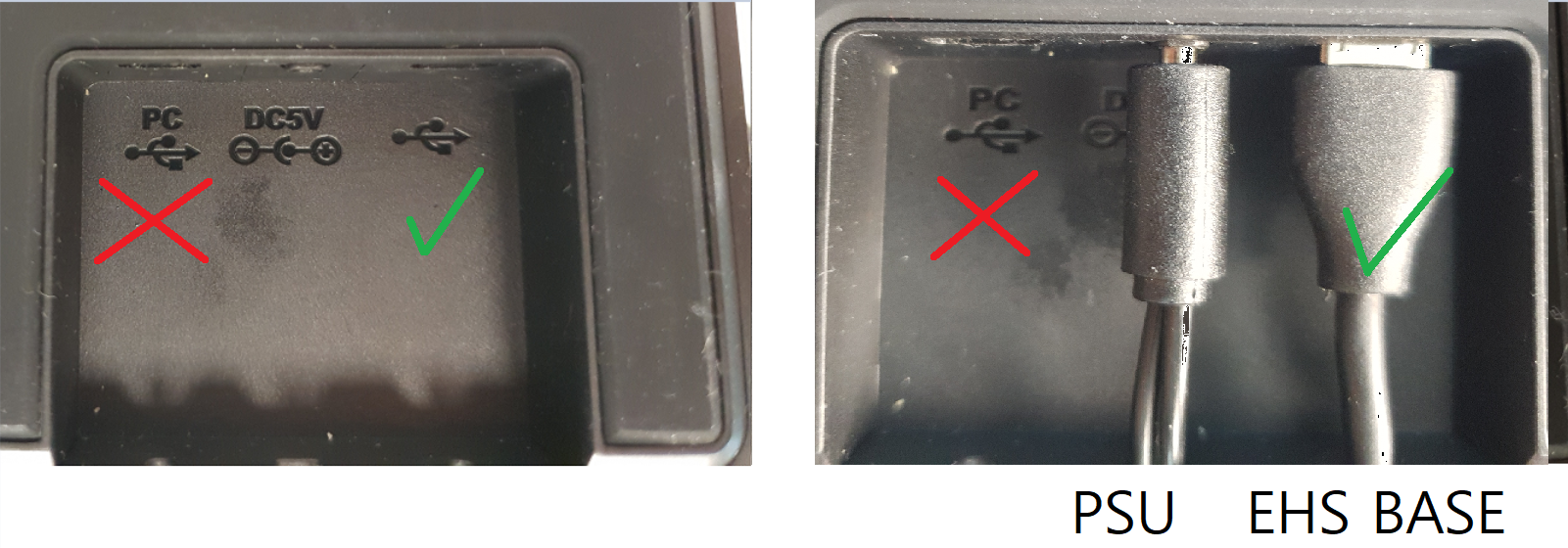

On the Headset Base

(connect the PSU and the EHS Base USB connection on the ports shown in the image)

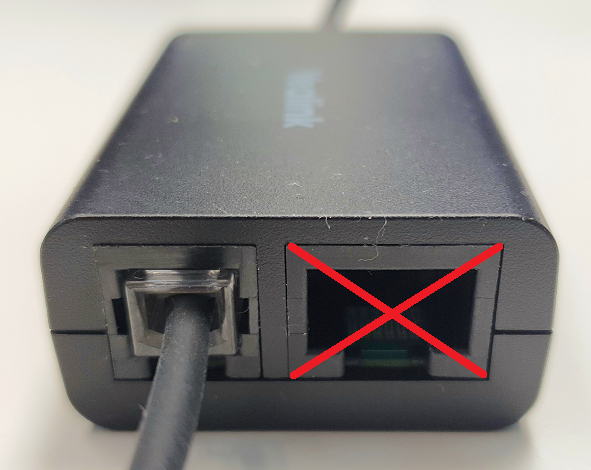

next, connect the EHS BASE & the EHS Cable together like this
(NO connection is needed for the AUX port, on the right side)

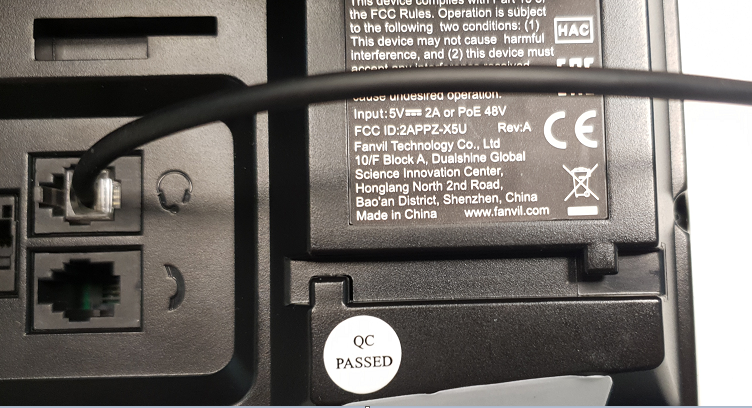

next, connect the EHS Cable to the Fanvil phone in the Headset port like this











Connecting to a PC (for use with the Nuacom Desktop App)

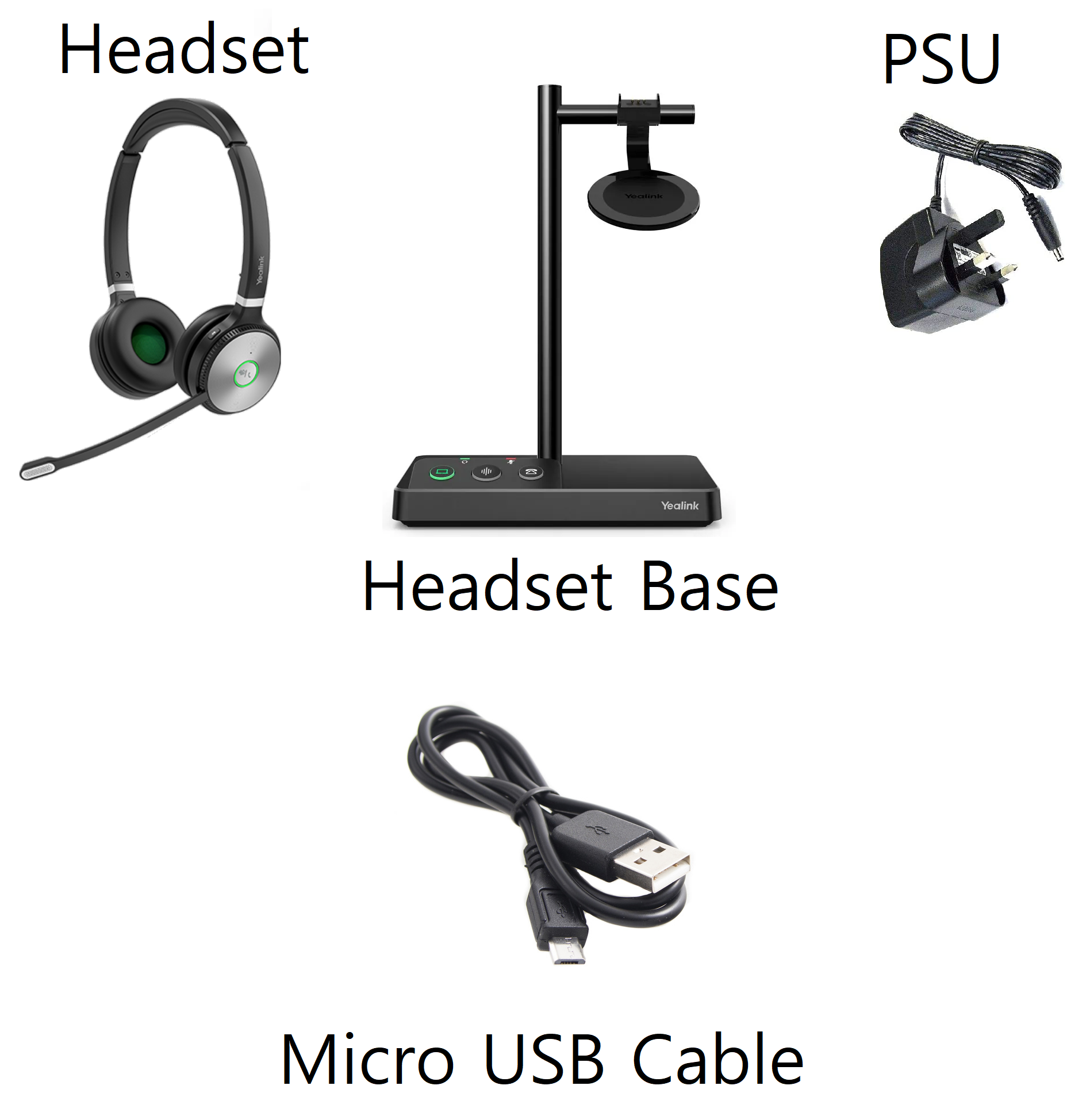

The WH62 headset will require the following contents (if being used to connect to a PC)

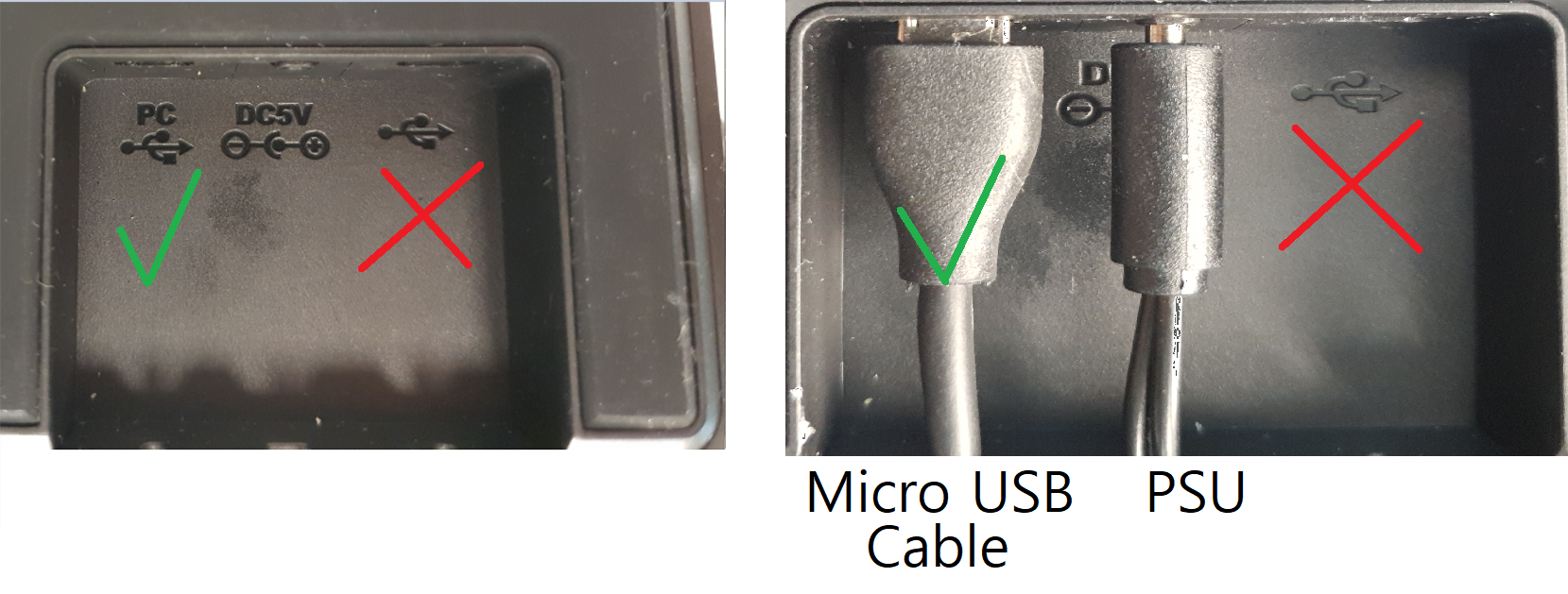

On the Headset Base

(connect the PSU and the Micro USB Cable to the ports shown in the image)







connect the USB from the Micro USB cable into your device





on the Nuacom App you can check the headset settings in

SETTINGS > AUDIO DEVICE
