1. Enter the W70B into the Registration Mode

Before registering the handset, you must enter the W70B into registration mode.

Procedure

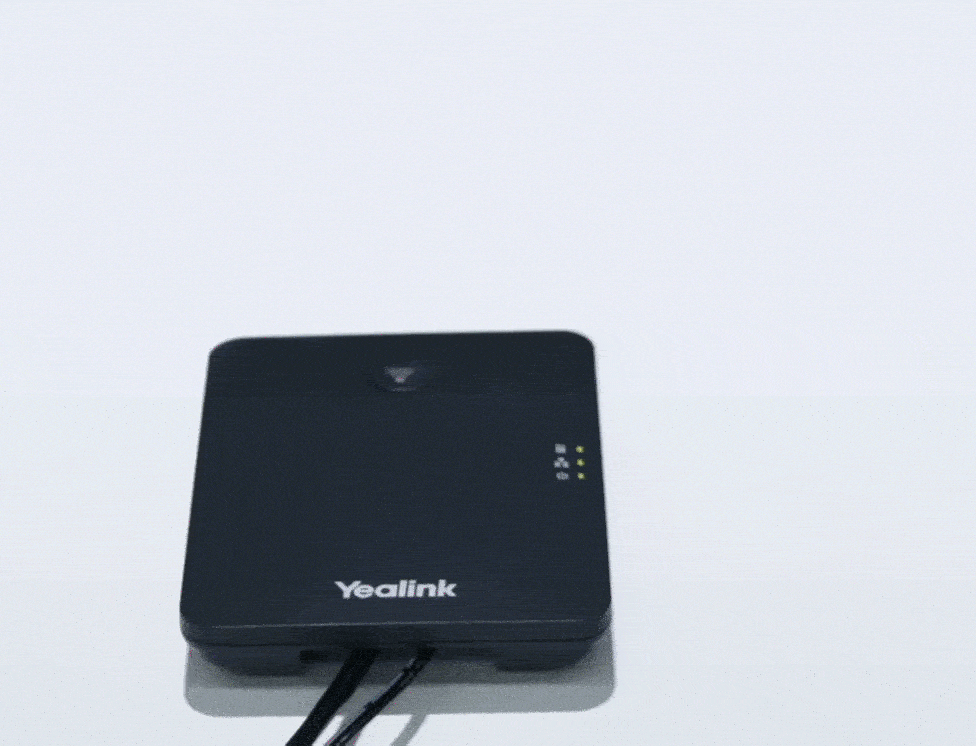

1. Long press  on the base station till the registration LED flashes.

​ The base station is now in registration mode.

2. Register a New Handset to a Base Station

With one touch, you can quickly register your handset to the base.

Models supported:

W53H/W56H/W57R/W59R/W73H/W78H/CP930W/CP935W

Before You Begin

Ensure the base station is in registration mode (Step 1 above), and the phone prompts "Unregistered!".

Procedure

Do one of the following:

1. Press the Reg soft key to register the handset.

​ The handset is searching for a base station in registration mode.

2. You can also press OK > Register Handset and then select the desired base to register the handset. You need to enter the base PIN (default: 0000) after a base is found.
   • For CP935W, press More > Basic > Registration.

Result

After the handset is registered successfully, the phone prompts “Handset Subscribed” and “Base NO. (The last 4 characters of the connected Base’s MAC address)”.

After the handset is initialized successfully, an icon with the internal handset number and handset name appears on the phone screen.
Success!!
