Setting up the WH64 Headset (for a Fanvil phone & Nuacom Desktop App)

  • Updated


Connecting to a Fanvil phone
(EHS METHOD)

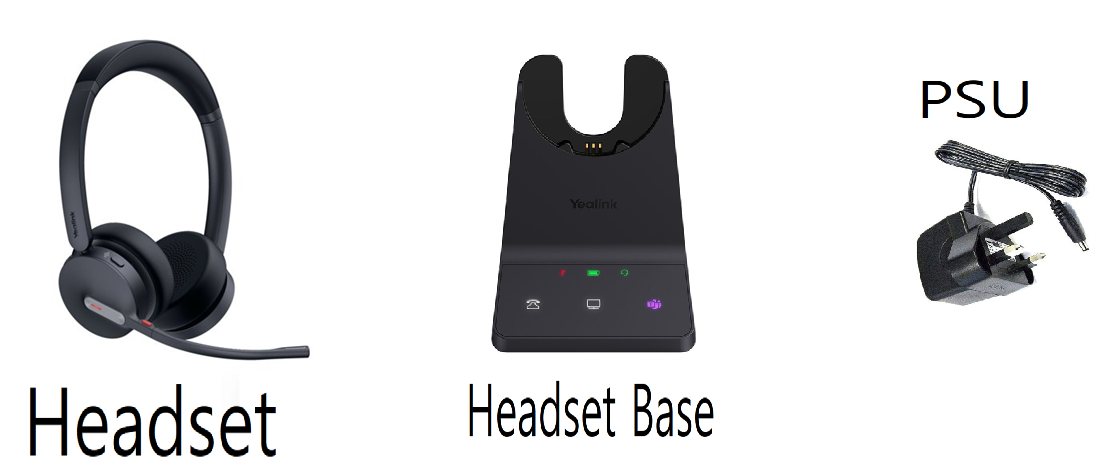

The WH64 headset will require the following contents
(if being used to connect to a Fanvil Phone)

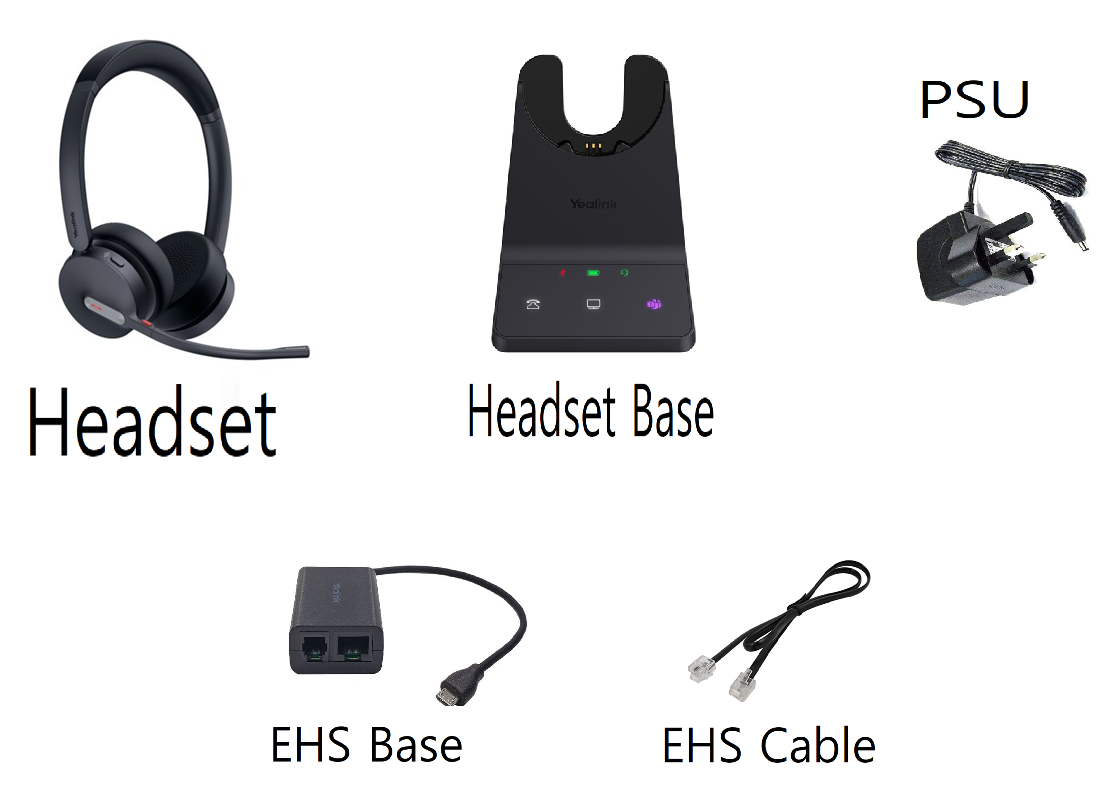

WH64 - PARTS.png

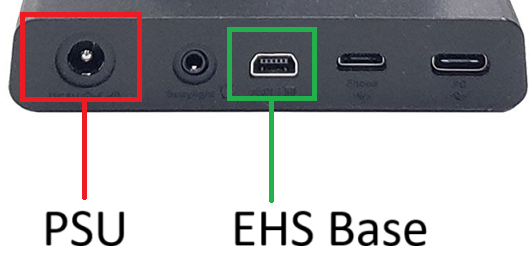

STEP 1 - Connect the PSU And EHS Base
to the following ports on the WH64 Headset Base
(DO NOT connect any other cables or fill any other ports)

WH64 BASE - 1.png

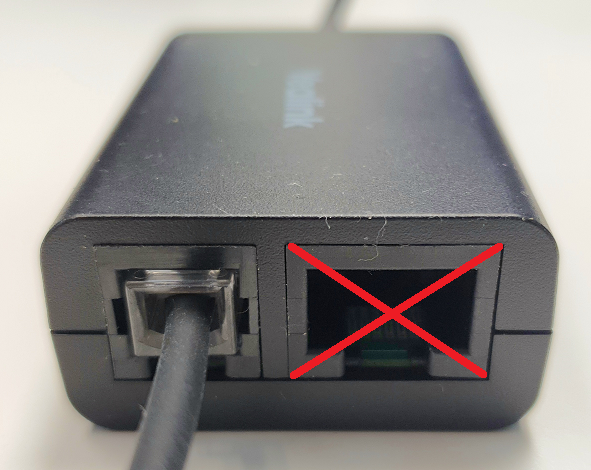

STEP 2 - Connect the EHS Cable to the smaller port
& ensure only this port is connected
(the AUX port does not need to be connected)

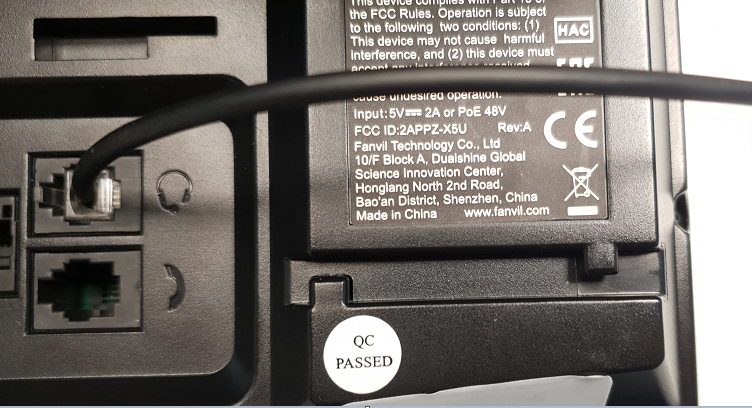

STEP 3 - Connect the EHS Cable from the EHS Base to the Fanvil Headset port

FANVIL REAR EHS.png










Connecting to the Desktop App



The WH64 headset will require the following contents
(if being used to connect to a PC/laptop)

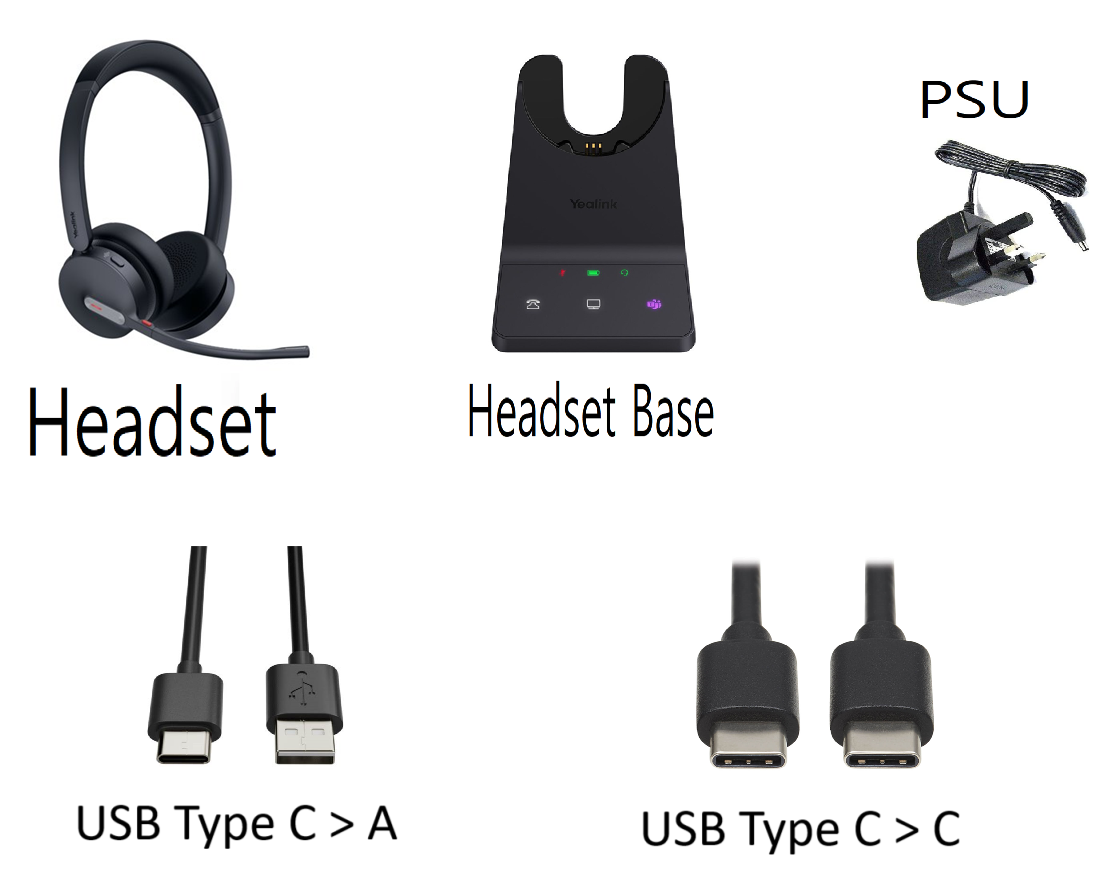

WH64 - PARTS PC.png

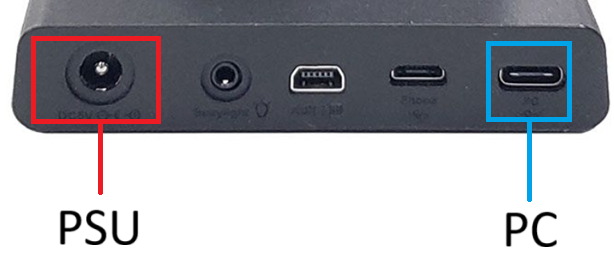

STEP 1 - Connect the PSU to the WH64 Base


STEP 2 - you can choose to use either the USB Type C > A
OR
USB Type C > C
(depending on what your device has)


(DO NOT connect any other cables or fill any other ports)

WH64 BASE - PC.png






Connecting to a Fanvil phone
(USB METHOD)

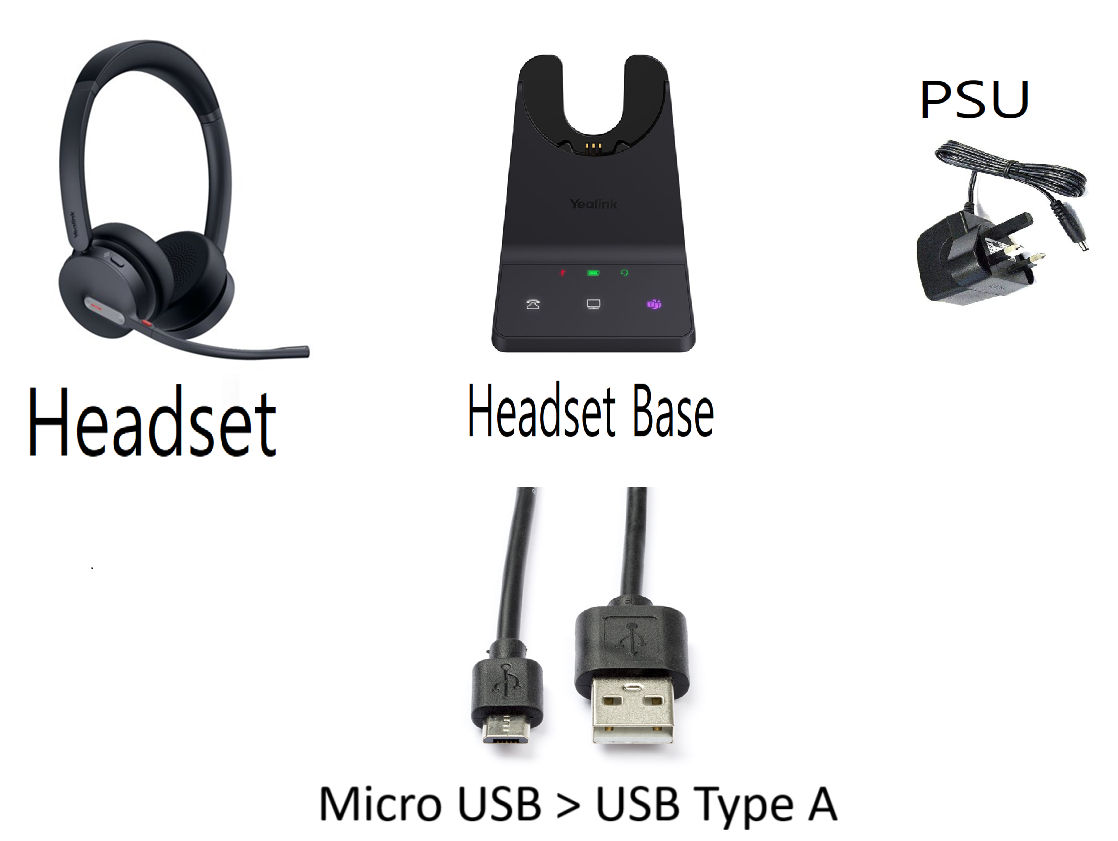

The WH64 headset will require the following contents
(if being used to connect to the USB port on the Fanvil Phone)

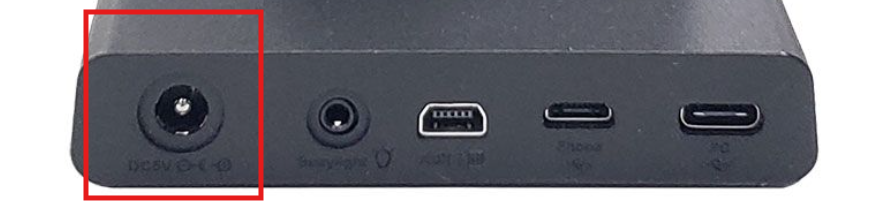

STEP 1 - Connect the PSU to the WH64 Base


STEP 2 - connect the Micro USB to the WH64 Headset Base in the Phone Port

(DO NOT connect any other cables or fill any other ports)








Connecting to a Fanvil phone
(Bluetooth METHOD)



The WH64 headset will require the following contents
(if being used to connect to the Fanvil phone Via Bluetooth the Fanvil Phone)





STEP 1 - Connect the PSU to the WH64 Base

(DO NOT connect any other cables or fill any other ports)





STEP 2 - Connect the Headset to the Fanvil Phone Via Bluetooth

Bluetooth will need to be enabled on the phone

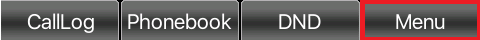

On the Main Screen, select Menu

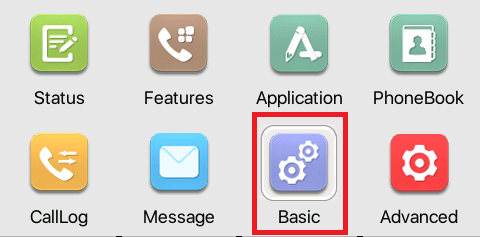

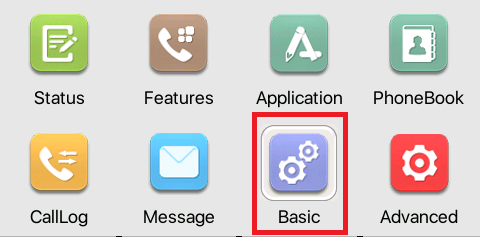

  • Using the arrow buttons, go to Basic Settings, then press OK

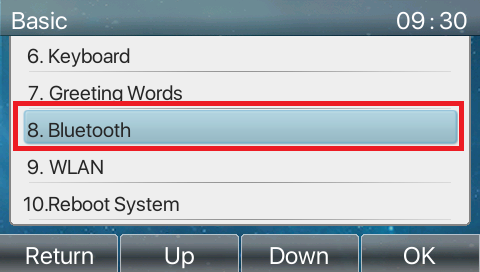

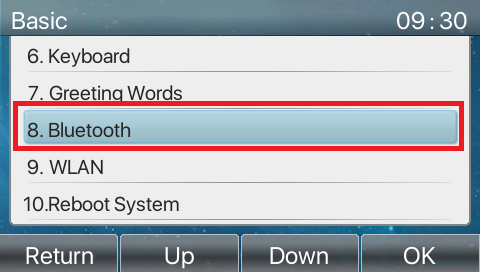

  • Using the arrow buttons, go to Bluetooth, then press OK

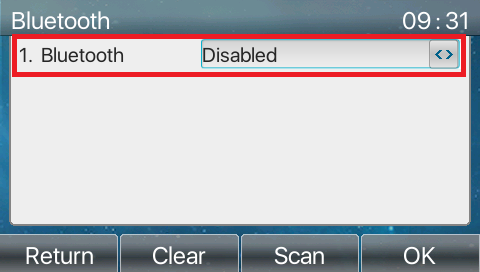

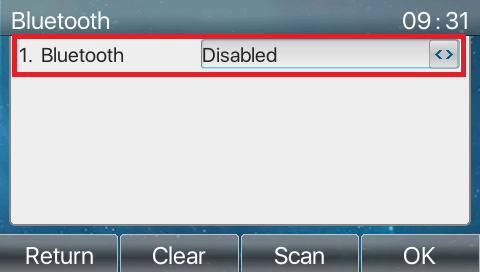

  • Using the arrow buttons, enable Bluetooth by selecting enabled, then press OK

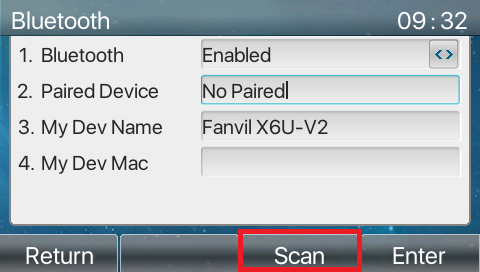

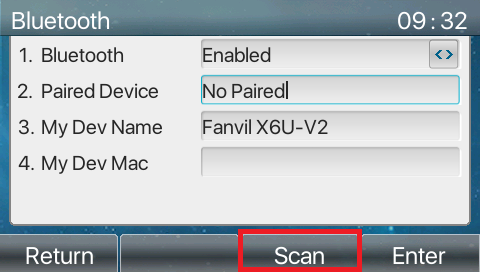

  • Using the arrow buttons, move to "Paired Device" then select the option to Scan for local devices

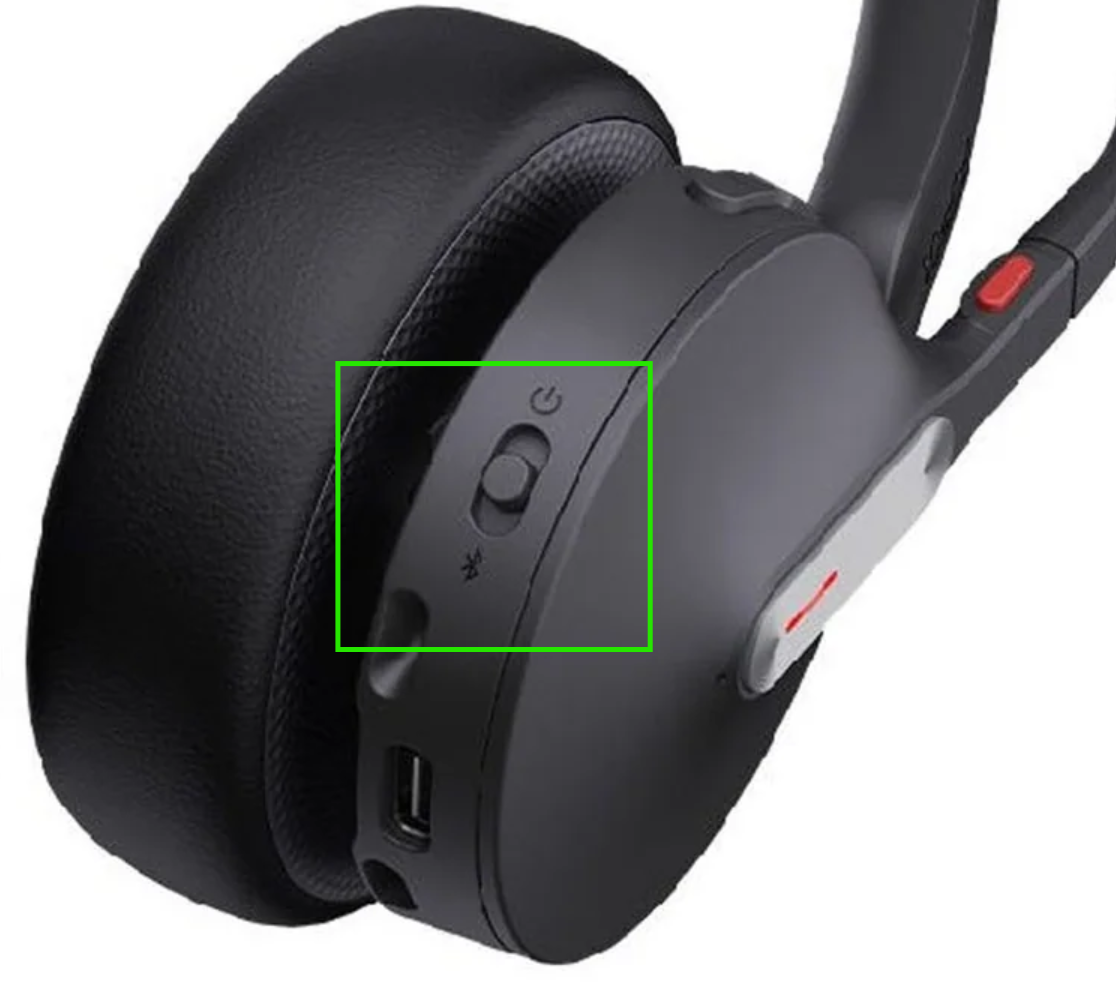

  • place the headset to Pairing Mode
    by moving and holding the switch on the headset to the Bluetooth Icon for approx 3 > 6 seconds

    (the light should start to flash)

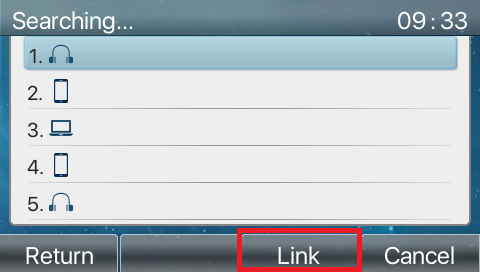

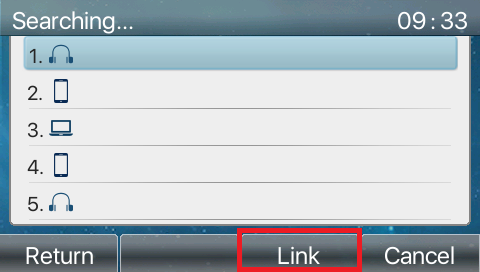

  • Using the arrow buttons on the fanvil phone, find the headset you want to connect to

    (the headset must be in a pairing mode at this step
    see above)

    then select the Link option to pair and connect the headset to the phone
