Getting to know your Cisco 7821 Handset

  • Updated



#

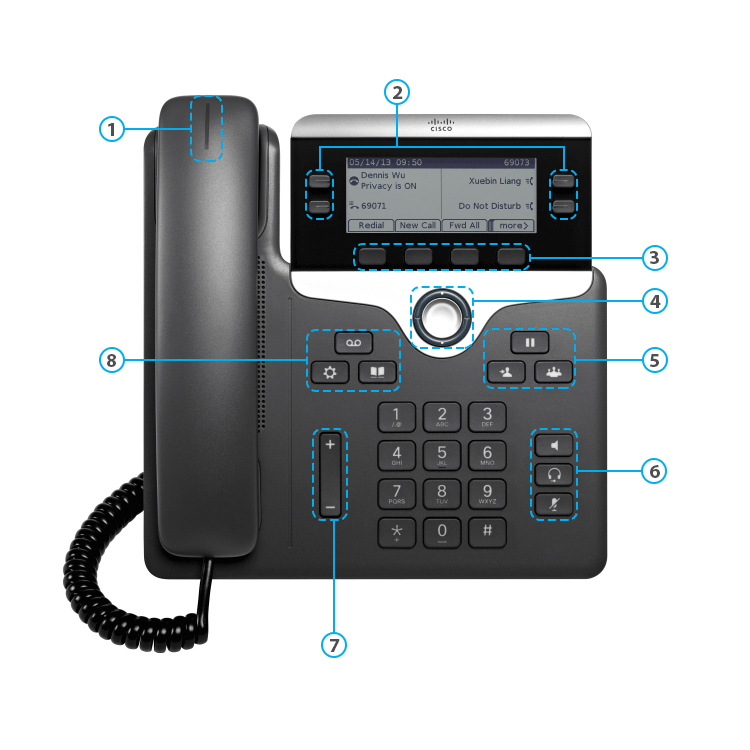

Phone Features

Description

1


Handset and Handset
light strip



Indicates whether you have an incoming call (flashing red) or a new voice message (steady red).


2

Programmable feature buttons and line buttons

Access your phone lines, features, and call sessions.

3


Softkey buttons

Access to functions and services.

4



Navigation cluster


Navigation ring and Select button. Scroll through menus, highlight items, and select the highlighted item.

5


Hold/Resume
Conference, and Transfer


Hold/Resume: Place an active call on hold and resume the held call.

Conference: Create a conference call.

Transfer: Transfer a call.

6


Speakerphone, Mute, and Headset

Speakerphone: Toggle the speakerphone on or off. When the speakerphone is on, the button is lit.

Mute: Toggle the microphone on or off. When the microphone is muted, the button is lit.

Headset: Toggle the headset on. When the headset is on, the button is lit. To leave headset mode, you pick up the handset or select Speakerphone.



7


Volume button


Adjust the handset, headset, and speakerphone volume (off hook) and the ringer volume (on hook).

 8 ContactsApplications, and Messages



Contacts: Access personal and corporate directories.

Applications: Access recent calls, user preferences, phone settings, and phone model information.

Messages: Autodial your voice messaging system.
